TransFlex
Roll-to-Roll ALD

Continuous, simplified processing.

TransFlex Roll to Roll technology is a fast Roll to Roll ALD coating method that achieves high-speed, low cost deposition by weaving the flexible substrate back and forth between physically separated precursor regions.

Continuous
Processing

Web speeds of up to 10 meters per second.

Simplified Processing
and Maintenance

The web surface is the only surface that "sees" both reactants.

High
Precursor Utilization

TransFlex ALD avoids the wasted precursor associated with conventional coating “heads”.

Film Properties of Conventional ALD

Ideal for various commercial & industrial applications

By far the fastest roll to roll ALD coating method ever demonstrated.

Unmatched for processing speed and cost

High speed ultra barrier coatings demonstrated in a single pass on PET

Continuous Roll to Roll processing at speeds up to 10 meters per second

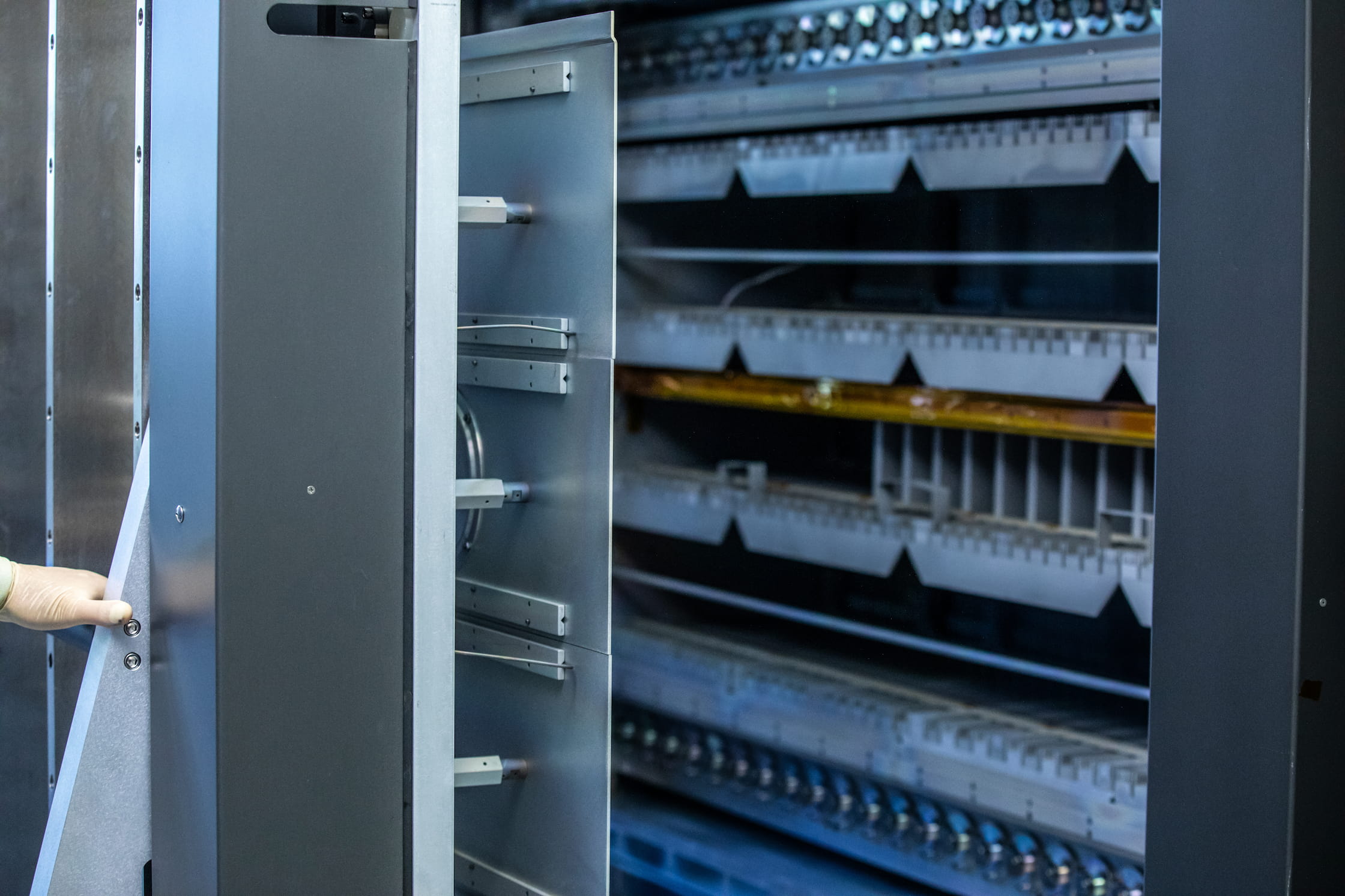

machine for roll-to-roll ald

Achieve high speed, low cost deposition in a remarkably simple way.

We weave the flexible substrate back and forth between physically separated precursor regions. This geometry allows extended path lengths for the substrate in each of the reaction zones, allowing web speeds orders of magnitude faster than can be achieved in Spatial ALD reactors utilizing coating “heads”.

Large Passageways, Low Temperatures, High Speed

Operating under medium vacuum like conventional ALD, precursor separation is maintained by differential pressure and pumping, enabling millimeter-wide passageways for the substrate. In contrast, atmospheric pressure Spatial ALD requires micron-scale gaps to prevent mixing. Using a simple DC direct plasma instead of water as the oxygen precursor allows for very high web speeds, even at low temperatures.
